Model Description
-

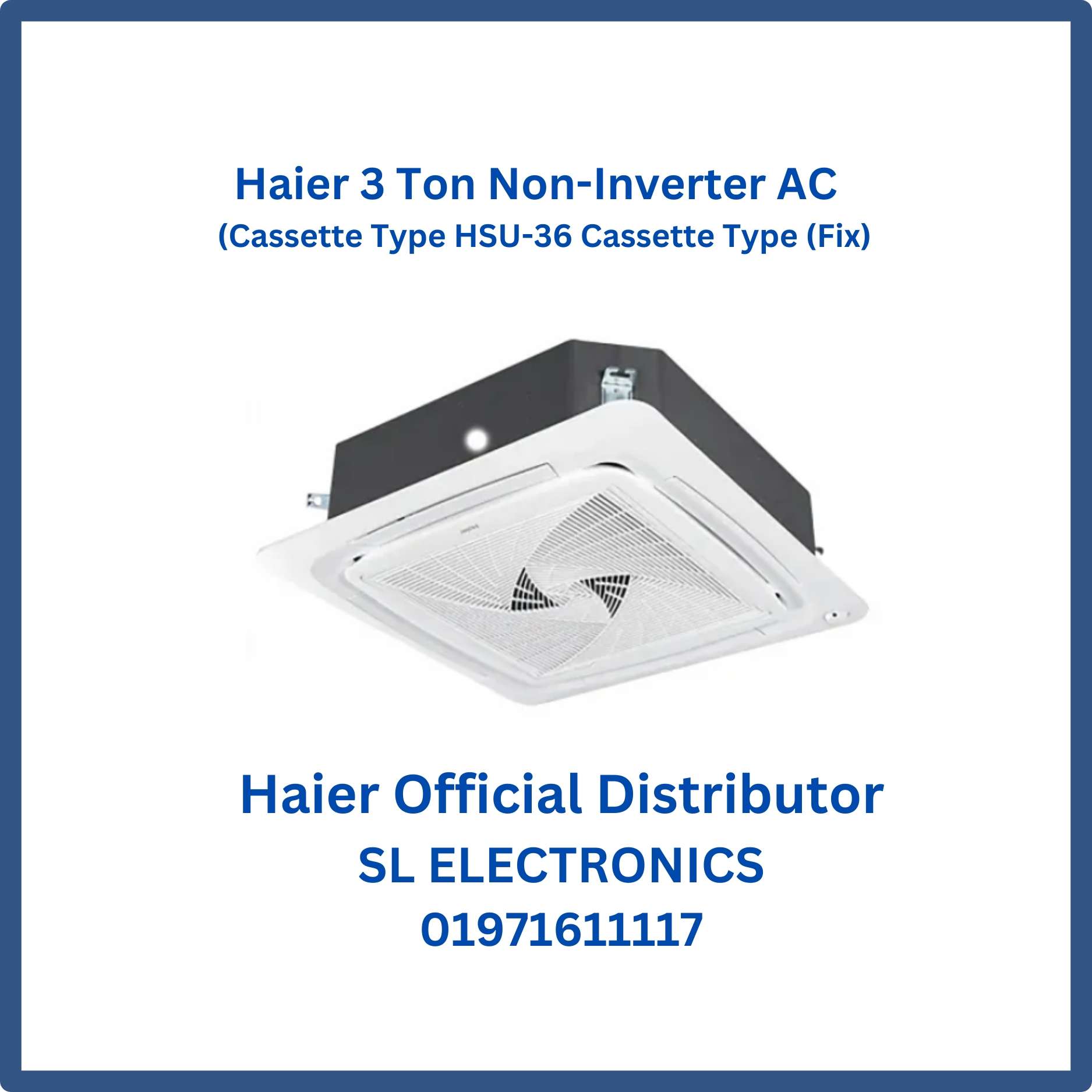

HBL Model Name:HSU-36CassetteType:(Fix)
-
IDU Code:AB105S1SR1FA
-
ODU Code:1U105S1LN1SB
-
Panel Code:PB-950QB
Capacity
-
Cooling (BTU/h):36000
-
Heating (BTU/h):Not Applicable
Power Input
-
Cooling (W):3300
-
Heating (W):Not Applicable
Energy Class
-
EER:3.18
Running Current
-
Cooling (A):5.32
-
Heating (A):Not Applicable
Power Supply
-
(Ph, V, Hz):3/380~415/50
Air Flow
-
H/M/L/So (m3/h):2080/1780/1580/1400
Moisture Removal Capacity
-
(10-3m3/h):2L/H
Refrigerant Type
-
Refrigerant Type:R32
Refrigerant Pipe
-
Liquid Side Diameter (mm):9.52
-
Gas Side Diameter (mm):15.88
Indoor
-
Net Dimension (mm) W/D/H:840/840/246
-
Package Dimension (mm) W/D/H:978/978/312
-
Net Weight (kg):25
-
Gross Weight (kg):30.5
-
Sound power Level [dB(A)] Hi/Mid/Lo:53/50/47/43
Outdoor
-
Net Dimension (mm) W/D/H:950/370/965
-
Package Dimension (mm) W/D/H:1050/485/1095
-
Net Weight (kg):74
-
Gross Weight (kg):85
-
Sound Power Level [dB(A)] Hi/Mid/Lo/So:59
-
Compressor Type:Rotary
Panel
-
Model:PB-950QB
-
External Dimensions (W/D/H) mm:950/950/50
-
Packing Dimensions (W/D/H) mm:1000/1000/110
-
Net Weight (KG):5.5
-
Gross Weight (KG):8.5
Special Features
-
DC Fan Motor:Yes
-
Large Heat Exchanger Design:Yes
-
Multiple Air Speed for Ultimate Comfort:Yes
-
Hidden LED Display:Yes
-
Automatic Airflow Control:Yes
-
Installation Friendly:Yes
-
Convenient Filters:Yes
-
Energy Saving:Yes
-
Super Big Inlet Grille:Yes
-
Brand New Designed Fan:Yes
-
Individual Flap Control:Yes
-
High Ceiling Mode:Yes
-
Round Way Air Supply:Yes
-
High Lift-up Drain Pump:Yes
