Model Description
-

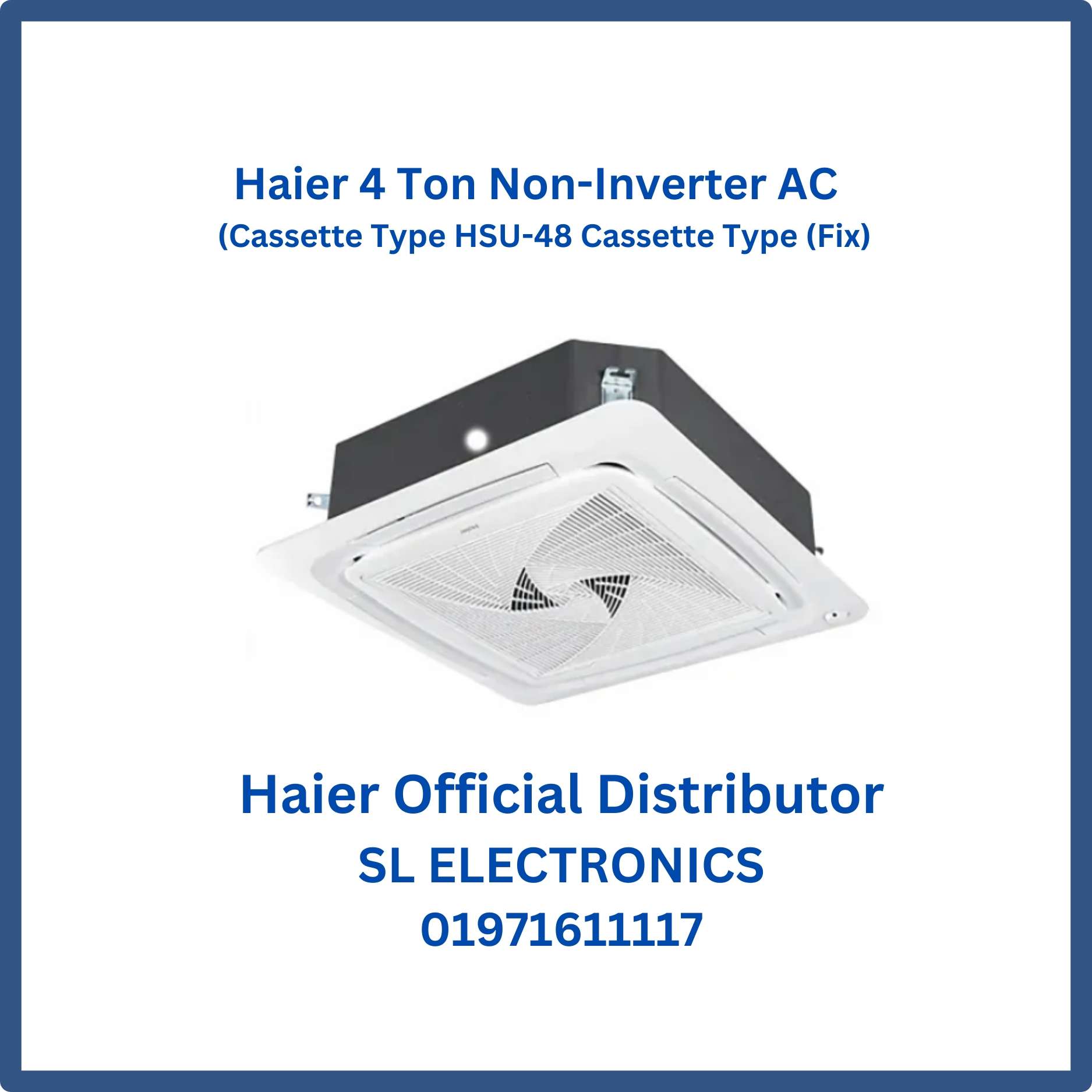

HBL Model Name:HSU-48CassetteType:(Fix)
-
IDU Code:AB140S1SR1FA
-
ODU Code:1U140S1LP1SB
-
Panel Code:PB-950QB
Capacity
-
Cooling (BTU/h):48000
-
Heating (BTU/h):Not Applicable
Power Input
-
Cooling (W):4550
-
Heating (W):Not Applicable
Energy Class
-
EER:3.1
Running Current
-
Cooling (A):7.33
-
Heating (A):Not Applicable
Power Supply
-
(Ph, V, Hz):3/380~415/50
Air Flow
-
H/M/L/So (m3/h):2170/2010/1730/1450
Moisture Removal Capacity
-
(10-3m3/h):2L/H
Refrigerant Type
-
Refrigerant Type:R32
Refrigerant Pipe
-
Liquid Side Diameter (mm):9.52
-
Gas Side Diameter (mm):15.88
Indoor
-
Net Dimension (mm) W/D/H:840/840/288
-
Package Dimension (mm) W/D/H:978/978/353
-
Net Weight (kg):27
-
Gross Weight (kg):33
-
Sound power Level [dB(A)] Hi/Mid/Lo:54/51/48/44
Outdoor
-
Net Dimension (mm) W/D/H:950/370/1350
-
Package Dimension (mm) W/D/H: 1050/485/1500
-
Net Weight (kg):91
-
Gross Weight (kg):105
-
Sound Power Level [dB(A)] Hi/Mid/Lo/So:60
-
Compressor Type:Rotary
Panel
-
Model:PB-950QB
-
External Dimensions (W/D/H) mm:950/950/50
-
Packing Dimensions (W/D/H) mm:1000/1000/110
-
Net Weight (KG)5.5
-
Gross Weight (KG):8.5
Special Features
-
DC Fan Motor:Yes
-
Large Heat Exchanger Design:Yes
-
Multiple Air Speed for Ultimate Comfort:Yes
-
Hidden LED Display:Yes
-
Automatic Airflow Control:Yes
-
Installation Friendly:Yes
-
Convenient Filters:Yes
-
Energy Saving:Yes
-
Super Big Inlet Grille:Yes
-
Brand New Designed Fan:Yes
-
Individual Flap Control:Yes
-
High Ceiling Mode:Yes
-
Round Way Air Supply:Yes
-
High Lift-up Drain Pump:Yes
